Online UPS - 30KVA and Above
We, Meghjit Power Solutions, one of the leading Emerson UPS dealers in Kolkata, offer you the richest range of products with state of the art technologies and with the trust of brand Liebert.
Type of UPS:
- SCR based UPS
- IGBT based UPS
- Transformer less design
- Inbuilt Isolation Transformer design
- Monolithic UPS
Models:
- Liebert ITA (30-40kVA)
- Liebert EXS (30-80kVA)
- Liebert EXM (80-200kVA)
- Liebert NX (250-400kVA)
- Liebert EXL (300-1200kVA)
- Hipulse-U (30-500kVA)
- Liebert APM –
- 90KVA (18KW Modules)
- 150 & 300 kVA ( 30kW Modules)
- 250 , 400 & 600 kVA ( with 50kW Modules)
- Trinergy Cube (300- 3000KVA)
Product Basket: Meghjit Power Solutions, the Emerson UPS dealers in Kolkata offer you the below product range

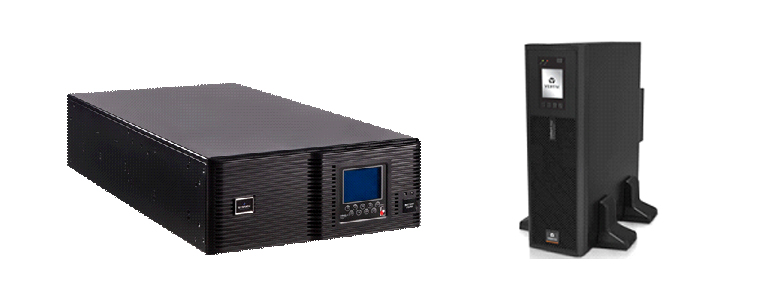

Liebert ITA2 30kVA and ITA 40 kVA
Liebert ITA is a full featured transformer free scalable UPS designed to offer compact, efficient and reliable power to power thirsty modern electronic gadgets. It features double conversion online design that ensures continuous high quality power even when the main AC power fails.
Features and Benefits:
- IGBT Based Rectifier
- Advanced DSP Based Technology
- Unity output Power factor for 30kVA and 0.9 for 40kVA
- Double conversion efficiency up to 95%
- ECO mode efficiency up to 98.5%
- Input Power factor up to 0.99
- Total Current Harmonic Distortion (THDi) < 5%
- High capacity battery charger
- Dynamic Design; Rack/Tower convertible
- Scalable up to 4 units in N+X configuration
- Integrated parallel load bus and synchronization port (LBS)
- Phase compatibility: 3/1 or 3/3 phase
- Comprehensive value added options including LPD, UPD etc
- Easy site installation and configuration
Liebert EXS 30-60 KVA
Features and Benefits:
- IGBT based UPS
- Transformer less design
- Inbuilt output Isolation Transformer (optional)
- Monolithic UPS
- Input PF 0.99
- Input THDi <3%
- Topology Level 3
- Output P.F. 1
- Efficiency 0.96
- Online Battery Monitoring
- No of Battery 32-40
- Event log 10000 nos
Can be used for Applications: Motors with VFD; IT; Medical Diagnostic Equipment; Lighting
Liebert EXM 80-200 kVA
Medium Size UPS as dynamic as your business
Small and medium sized businesses need UPS solutions that deliver lower first costs and ongoing operational savings, high reliability, and enable speed and flexibility in a dynamic IT environment.
Vertiv’s commitment is to deliver the most technologically advance product for our customer’s mission critical applications, is once again reiterated by our next generation UPS series Liebert EXM
Features and Benefits:
- IGBT based UPS
- Transformer less design
- Inbuilt input/output Isolation Transformer (optional)
- Monolithic UPS
- Input PF 0.99
- Input THDi <3%
- Topology Level 3
- Output P.F. 1
- Efficiency 0.96
- Online Battery Monitoring
- No of Battery 30-44
- Event log 10000 nos
Can be used for Applications: Motors with VFD; IT; Medical Diagnostic Equipment; Lighting
Liebert EXL 300-1200 kVA
Features and Benefits:
- IGBT based UPS
- Transformer less design
- Monolithic UPS
- Input PF 0.99
- Input THDi <3%
- Topology Level 3
- Output P.F. 1
- Efficiency 0.97
- Online Battery Monitoring
- No of Battery 40-50
- Event log 10000 nos
Can be used for Applications: Motors (Manufacturing); IT; Medical Diagnostic Equipment
Liebert NX 250-400kVA
Features and Benefits:
- IGBT based UPS
- Transformer less design
- Monolithic UPS
- Input PF 0.99
- Input THDi <3%
- Topology Level 3
- Output P.F. 9
- Efficiency 0.95
- Online Battery Monitoring
- No of Battery 38-48
- Event log 512 nos
Can be used for Applications: Motors with VFD; IT; Medical Diagnostic Equipment; Lighting, Regenerative
Liebert APM 20-600KVA
Features and Benefits:
- IGBT based UPS
- Transformer less design
- Modular UPS
- Input PF 0.99
- Input THDi <3%
- Topology Level 3
- Output P.F. 1
- Efficiency 0.96
- No of Battery 90KVA/150KVA/300KVA 30-40, 250KVA 38-44, 400/600kva 32-44nos
- Event log 512 nos(30KVA module), 10000 nos(50KVA module)
Can be used for Applications: Data center -IT
Liebert HIPULSE U 30-500kVA INDIA
Utmost Reliable Power Solution for Critical Business Applications
The Liebert® Hipulse-UTM offers a reliable, scalable and user-friendly solution to ensure availability of various critical applications. The Liebert® Hipulse-UTM offers protection to your investment, and provides lower cost of ownership through its digital architecture and range of options which you can customize specifically for your needs.
Features and Benefits:
- Fully Digital, twin DSP controlled
- Rated at 0.9 output power factor to deliver more active power
- Handle leading power factor loads without KW derating under specified conditions
- On-Line Double Conversion IGBTbased PWM Inverter
- Wide input voltage tolerance (+20/-20%)
- Wide input frequency range of 45Hz to 65Hz
- High overload capability of static bypass (14 times for 10 milliseconds and 10 times for 100 milliseconds)
- Capability to handle: High crest factor loads, 100% non-linear loads, 100% unbalanced loads
- Built-in maintenance bypass
- Front access for spares replacement and preventive maintenance
- Easy Dual bus configuration architecture
- Adjustable frequency synchronization window up to 6% in the static bypass
- Field protocols ModBus / Jbus
- Network protocols SNMP
- Overload capability of the UPS: 110% full load for 60 minutes, 125% full load for 10 minutes, 150% full load for 1 minutes
- Compact footprint
Liebert HIPULSE D
Unmatched expertise of Emerson Network Power, Coupled with interaction with industry leading consultants, has created enviable domain expertise for us in the field of clean and critical power requirement in industrial segment. This has created many success stories in the UPS industry and landmark achievements in the power elctronics field. This expertise has helped Emerson Network Power to design Hipilse D Series UPS, which address issues about the clean and critical power requirements in the engineering industry.
The Hipulse D UPS gives maximum reliability and makes optimum use of available resources, making it the best solution for the mission critical applications.
Features and Benefits:
- State of the art IGBT based design
- Advanced Rectifier deisgn
- Total Digital control
- Input to output galvanic Isolation
- Robust electrical performances
- Customisation capability
- Advanced interface using SNMP/MODBUS
- User friendly LCD Display
- Battery management features
