Voltage Stabilizers
What is Servo Controlled Voltage Stabilizer?
A Servo Stabilizer is a Servo motor controlled stabilization system that performs optimum voltage supply using a Buck\Boost transformer booster that captures voltage fluctuations from input and regulates current to the correct output.
Tips to select stabilizer –
To get the maximum power – Multiply “230 (Single Phase)/440 (Three Phase) x Max rated Current” of all the equipment that are to be connected to the stabilizer. Add a 20-25% safety margin to arrive at stabilizer rating. If you have plans to add more devices later, you can keep buffer for them.
Our Offerings:
Meghjit Power Solutions, the leading power conditioning equipment supplier, offering you the best product and quality service at a right price.
Servo Controlled Voltage Stabilizer price is widely depends on the input voltage range and the quality of parts used for manufacturing.
We with our more than two decades of experience in sales and service of Servo Controlled Voltage Stabilizers and have installed base from 1KVA to 1000KVA machines.
We offer you an attractive price with free of cost delivery at site across the India and commissioning without any charges when dealing in Servo Stabilizer.
Brand: Fuji Electric Consul Neowatt
Range: 1kVA to 3500kVA
Warranty: 5 Years on Oil Cooled and 2 Years on Air Cooled
Delivery time: 3-6 weeks from the date of receipt of order
Price: You can fill up the enquiry sheet in our portal and will get the quotation immediately
Features –
- Onsite Service
- Frequency cut off protection
a. Phase reversal protection and cut off
b. Single phase prevention and cut off
c. Earth neutral voltage cut off protection
d. Neutral failure protection - Voltage correction speed – 70V per second
- Efficiency – More than 98%
- Surge Arrester/ RF suppressor (Optional)
Options of Servo Stabilizer –
- Air Cooled or Oil Cooled
- Single Phase or Three Phase

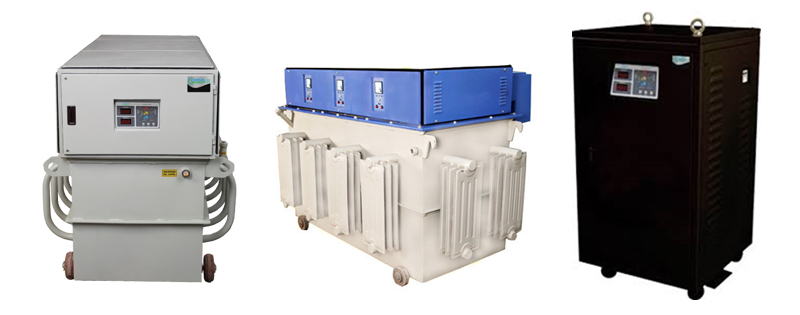

OIL COOLED SERVO CONTROLLED VOLTAGE STABILIZERS (3-3500 kVA)
Fuji Electric Consul Neowatt is the No. 1 Servo Controlled Voltage Stabilizer (SCVS) brand in India. The stabilizers are rugged and proven over 30 years. Oil cooled servo stabilizer are available in a range from 3 – 3500 KVA.
Consul Neowatt SCVS is suitable for CNC Machines, CMM, Textile & Spinning mills, Cold Storage units, Food processing equipment, CT Scan, MRI machines, Retail outlets, Restaurants and Office applications.
We, Meghjit Power Solutions are expertise in power conditioning equipment sales and service for last two decades and offering you the best in Servo Stabilizer within this industry. We have installed base of up to 1000KW Oil Cooled Servo Controlled Voltage Stabilizers of Fuji Electric Consul Neowatt. We offer you the best price and services and quickest response time.
Features & Benefits of Oil cooled Servo Stabilizer:
- Set output voltage sensitivity
- Output over / under voltage cut-off
- Input over voltage / under voltage cut-off
- Over load cut-off
- Trip time delay adjustments with variable setting
- Opto isolated motor driven control
- Manual and auto start facility
- Common control card – any capacity
- Output start and stop facility
- Fully micro control function
- Generator compatibility
- Both outdoor and indoor models
- True RMS sensing without control transformer for output and input
| Capacity | 3-3500 KVA | ||||||
| Input Voltage Range* |
|
||||||
| Output Voltage | 380/400/415 V +1% Set | ||||||
| Input Frequency | 47-53 Hz | ||||||
| Control Type | Digital-Micro controller based | ||||||
| Correction Speed* | 70 V per second | ||||||
| Reset | Manual / Auto Reset with time delay and programmable | ||||||
| Protections | A) Electronic over & under voltage trip with time delay for input & output B) Electronic overload protection and short circuit protection upto 30 KVA through MCB and the Manual bypass is built in. Above 30 KVA MCB/MCCB is an optional. C) Surge Arrester/RF suppressor (OPTIONAL) D) Phase reversal protection and cut off E) Single phase prevention and cut off F) Neutral failure protection G) Frequency cut off protection H) Earth neutral voltage cut off protection |
||||||
| Metering Digital Type (Class 1 Accuracy With Full Scale ± 1) |
|
||||||
| Audio Alarm | For tripping conditions | ||||||
| Nature Of Cooling | ONAN | ||||||
| Effect Of Power Factor | Nil | ||||||
| Waveform Distortion | Nil | ||||||
| Annunciation Panel | Non Latching LED indications with dual colour for Overload Latching Conditions | ||||||
| Efficiency | > 98% | ||||||
| Cabinet Colour | Siemens Grey | ||||||
| Provision Of Cabling | Input and Output terminations with provisions for fixing cable glands | ||||||
| Servo Motor Drive | Rugged AC step sychronous motor | ||||||
| Operating Temperature | 0-45° C |
AIR COOLED SERVO CONTROLLED VOLTAGE STABILIZERS
Fuji Electric Consul Neowatt is the No 1 Servo Controlled Voltage Stabilizer (SCVS) brand in India. The stabilizers are rugged and proven over 30 years. The Air cooled servo stabilizer is available in natural and forced air cooled in a range from 3 – 500 KVA.
Fuji Electric Consul Neowatt SCVS is suitable for CNC Machines, CMM, Textile & Spinning mills, Cold Storage units, Food processing equipment, CT Scan, MRI machines, Retail outlets, Restaurants and Office applications.
Meghjit Power Solutions offer you the best quality Air Cooled Servo Controlled Voltage Stabilizer with attractive price, onsite service and free of cost delivery and installation.
Features & Benefits of Air Cooled Servo Stabilizer:
- No potentiometer adjustments
- All parameters can be modified using the keypad in the front panel
- Set input voltage band
- Set output voltage
- Set output voltage sensitivity
- Output over / under voltage cut-off
- Input over voltage / under voltage cut-off
- Over load cut-off
- Trip time delay adjustments with variable setting
- Opto isolated motor driven control
- Manual and auto start facility
- Common control card – any capacity
- Output start and stop facility
- Fully micro control function
- Generator compatibility
- Both outdoor and indoor models
- True RMS sensing without control transformer for output and input
| · Capacity | 3-350 KVA | ||||||
| Input Voltage Range* |
|
||||||
| Output Voltage | 380/400/415 V +1% Set | ||||||
| Input Frequency | 47-53 Hz | ||||||
| Control Type | Digital-Micro controller based | ||||||
| Correction Speed* | 70 V per second | ||||||
| Reset | Manual / Auto Reset with time delay and programmable | ||||||
| Protections | A) Electronic over & under voltage trip with time delay for input & output B) Electronic overload protection and short circuit protection upto 30 KVA through MCB and the Manual bypass is built in. Above 30 KVA MCB/MCCB is an optional. C) Surge Arrester/RF suppressor (OPTIONAL) D) Phase reversal protection and cut off E) Single phase prevention and cut off F) Neutral failure protection G) Frequency cut off protection H) Earth neutral voltage cut off protection |
||||||
| Metering Digital Type (Class 1 Accuracy With Full Scale ± 1) |
|
||||||
| Nature Of Cooling | Natural air cooled upto 150 KVA & Forced air cooled above 150 KVA | ||||||
| Effect Of Power Factor | Nil | ||||||
| Waveform Distortion | Nil | ||||||
| Annunciation Panel | Non Latching LED indications with dual colour for Overload Latching Conditions | ||||||
| Efficiency | > 98% | ||||||
| Cabinet Colour | Dark Grey | ||||||
| Provision Of Cabling | Input and Output terminations with provisions for fixing cable glands | ||||||
| Servo Motor Drive | Rugged AC step sychronous motor | ||||||
| Operating Temperature | 0-45° C |
All specifications are subject to change
Custom servo stabilizer models available on request.
